Godt rørbasert RIAA trinn med hodetelefonforsterker fra velkjente Douk Audio.
- MM/MC
- VU-meter
- Volumkontroll
- Hodetelefonutgang
- Model: T4 PLUS

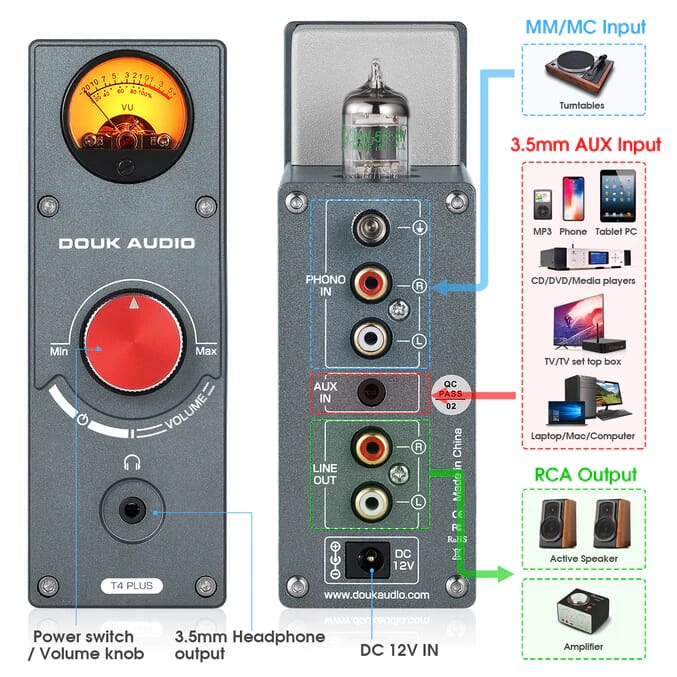

- Audio input: MM phono/turntable / 3.5mm AUX
- Audio output: stereo L/R RCA / 3.5mm headphone jack
- Max output power of headphone jack: 150mW@32O
- Matched headphone impedance: 32-300O
- AUX IN
AUX input level: 0.775V
RCA max output level: 1.5V
Frequency response: 20Hz-20KHz (±0.3dB)
S/N ratio: =110dB
THD: 0.2%
- Phono IN
Phono input level: 0.005V
RCA max output level: 300mV (MM) / 3V (MC)
Frequency response: conforms to RIAA characteristics (±3dB)
S/N ratio: 71dB
THD: 0.8%
- Working voltage: DC 12V
- Dimensions(W*D*H): 50*137*146mm / 1.97*5.39*5.75in
- Package dimensions(W*D*H): 300*230*65mm / 11.81*9.06*2.56in
- Net weight: 640g / 1.41lb
- Package weight: 1000g / 2.20lb
Packing List
- 1*T4 PLUS Preamp

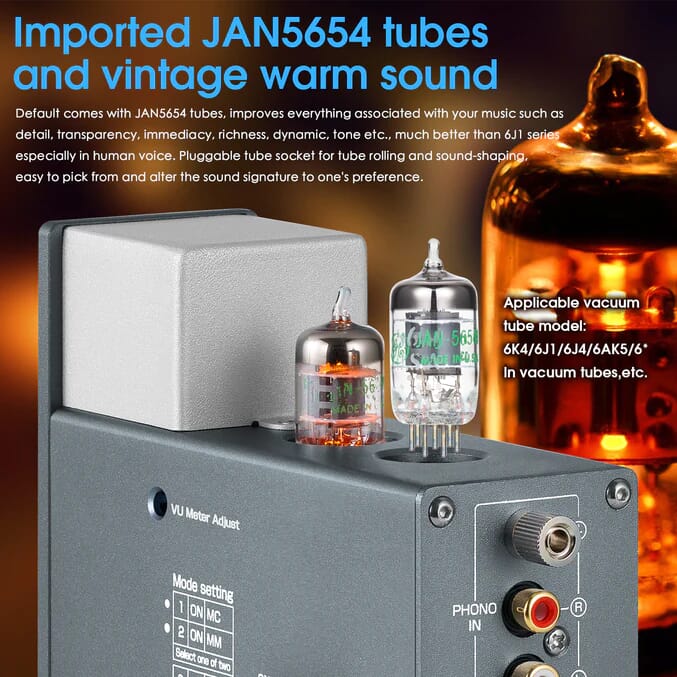

- 2*JAN5654 Vacuum Tube
- 1*DC 12V Power Adapter
- 1*3.5mm to RCA Cable
