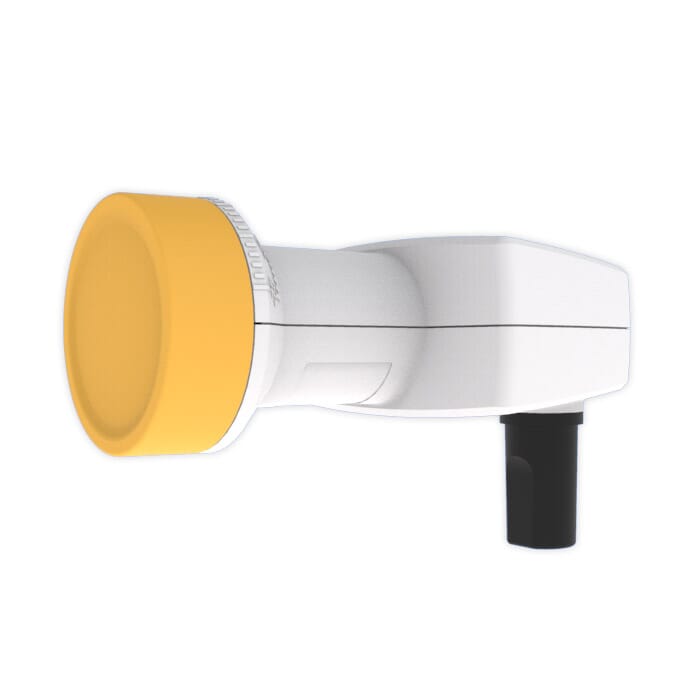

This Unicable II
™ LNB enables installations with up to 32 satellite receivers connected over a single coax cable and using the EN50494/EN50607 protocols providing access to unlimited number of transponders (also known as ‘Dynamic’ mode). Alternatively, it can be configured to deliver a fixed mapping of transponder frequencies to IF frequencies (also known as ‘Static’ mode), allowing an unlimited number of receivers to be connected and providing them access to up to 32 transponders based on digital channel stacking technology.
Digital channel stacking technology uses fast wideband analog to digital converters and applies digital signal processing to select desired transponder channels, up convert them and stack them as IF signals over the Unicable output port. The Unicable II
™ LNB offers a full flexibility of channel selection, supports many more set-top-boxes over existing cabling thus significantly reducing cost and simplifying installations at subscribers’ homes. The Static mode, allowing an unlimited number of receivers to be connected to the LNB, makes multi-room distribution and MDU installations substantially cheaper and simpler than ever before. The operating mode - dynamic or static - output power level, channel bandwidth, UB numbers, center frequencies and dish alignment mode are all programmable and can be configured and updated in the field using a dedicated programmer device - the SatPal
™ Controller*.
The LNB can be powered over a connected STB or by an AC/DC adapter over a power inserter in case the STB is unable to provide the necessary power. The Unicable II
™ is backward compatible, fully compliant with both EN50494 and EN50607 standards and integrates seamlessly into EN50494-only or mixed EN50494/EN50607 installations of compatible STBs, Next Generation PVRs and HGWs.
For more information on the Unicable II
™ technology and its advantages please refer to:
www.inverto.tv/what-is-unicable-2For more information on the SatPal
™ technology and its advantages please refer to:
www.inverto.tv/satpalMain Features:
- Low phase Noise HDTV-DVBS2 compliant
- Low Noise Figure
- Very high cross-pol isolation
- Programmable Static frequency mapping mode
- Dish alignment mode
*SatPal
™ Controller not included, sold separately as an optional accessory.

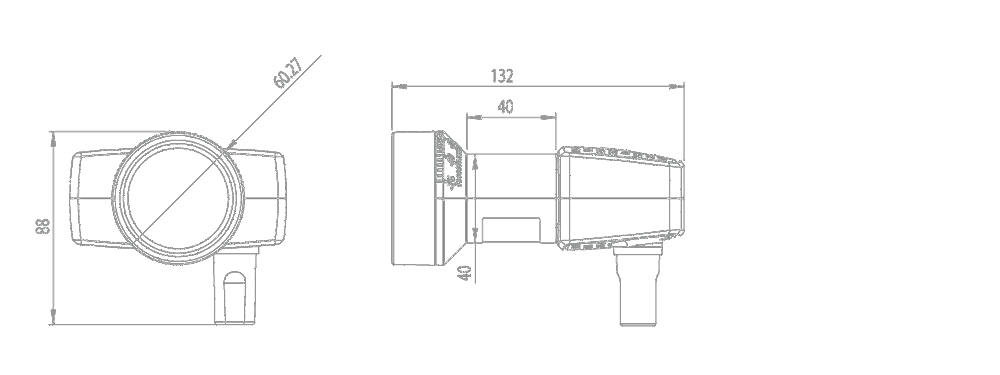

| Technical specifications |
| Input frequency range |
10.7 GHz ~ 12.75 GHz |
Noise figure
|
1 dB max. |
LO frequency
|
10.4 GHz |
| LO temperature drift |
±2.5 MHz max. |
| LO initial accuracy |
±1.0 MHz max. |
LO phase noise @ 10 kHz
|
-80 dBc/Hz max. |
Conversion gain
|
55 dB min. |
| Gain variation (over full band) |
±0.75 dB/UB max. |
Image rejection
|
40 dB min. |
| 1 dB compression point (@ output) |
0 dBm min. |
| Cross polarization isolation |
22 dB min. |
Output VSWR
|
2.5 : 1 |
Current consumption
|
400 mA max. @ 13.5 V |
Operating temperature
|
-30 °C ~ +60 °C |
Output impedance
|
75 O |
Output connector type
|
F-Type (female) |
| Weight |
220 g |
| Unicable II™ (dCSS) port specifications |
Bandwidth User Band
|
Configurable, 10 MHz ~ 64 MHz (default 30 MHz) |
Number of User Bands
|
Up to 32 User Bands |
Standard configuration
|
32 UBs in dynamic mode: |
|
UB1 1210 MHz (EN50494+EN50607) |
|
UB2 1420 MHz (EN50494+EN50607) |
|
UB3 1680 MHz (EN50494+EN50607) |
|
UB4 2040 MHz (EN50494+EN50607) |
|
UB5 984 MHz (EN50494+EN50607) |
|
UB6 1020 MHz (EN50494+EN50607) |
|
UB7 1056 MHz (EN50494+EN50607) |
|
UB8 1092 MHz (EN50494+EN50607) |
|
UB9 1128 MHz (EN50607) |
|
UB10 1164 MHz (EN50607) |
|
UB11 1256 MHz (EN50607) |
|
UB12 1292 MHz (EN50607) |
|
UB13 1328 MHz (EN50607) |
|
UB14 1364 MHz (EN50607) |
|
UB15 1458 MHz (EN50607) |
|
UB16 1494 MHz (EN50607) |
|
UB17 1530 MHz (EN50607) |
|
UB18 1566 MHz (EN50607) |
|
UB19 1602 MHz (EN50607) |
|
UB20 1638 MHz (EN50607) |
|
UB21 1716 MHz (EN50607) |
|
UB22 1752 MHz (EN50607) |
|
UB23 1788 MHz (EN50607) |
|
UB24 1824 MHz (EN50607) |
|
UB25 1860 MHz (EN50607) |
|
UB26 1896 MHz (EN50607) |
|
UB27 1932 MHz (EN50607) |
|
UB28 1968 MHz (EN50607) |
|
UB29 2004 MHz (EN50607) |
|
UB30 2076 MHz (EN50607) |
|
UB31 2112 MHz (EN50607) |
|
UB32 2148 MHz (EN50607) |
Control protocols
|
DiSEqC1.x / DiSEqC2.x, EN50494 / EN50607 |
Channel isolation
|
25 dB min. |
| Logistical info |
| Packaging dimensions (W x D x H) |
10.5 cm x 6.85 cm x 13.9 cm |
| Packaging weight |
0.26 kg |
| Quantity per Carton |
50 pcs |
| Carton dimensions (W x D x H) |
54.5 cm x 38.8 cm x 29.8 cm |
| Carton weight |
13.78 kg |
| Quantity per pallet |
600 pcs |
