IPBox TWO

Varenr.

ABIP2

Lager

Pris

kr 2 199,00

Kvantumsrabatt

Endelig... ny 4K modell fra IP Box

Features

4K Resolution (UHD)
2x DVB-S2X tuner
Processor: QUAD CORE
Flash: 16GB eMMC
RAM: 2GB DDR4
OS: Android 8.0 Oreo
1x card reader
TFT LCD display

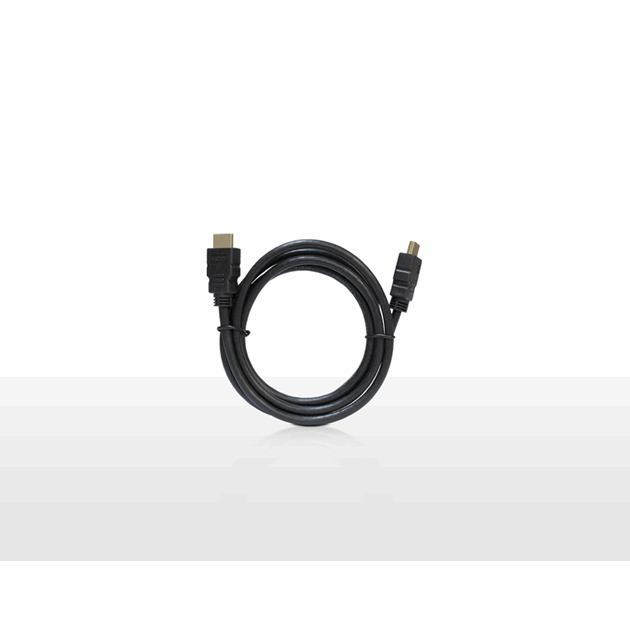

1x HDMI
1x microSD card slot (possible recording to microSD card)
1x USB 3.0 + 1x USB 2.0
Built-in WiFi
Built-in Bluetooth
Video Format: 4: 3, 16: 9, Letter Box, Pan & Scan
Video Resolution: 10bit, Up to 3840 x 2160 @ 60fps, HDR10 Support
Ethernet RJ45: 10/100 Mbps
S/PDIF optical digital audio output
Video Format: 4: 3 Letter Box, 4: 3 Pan Scan, 16: 9
Video Decoding: ITU-T H.265 / HEVC & H.264, ISO / IEC 13818-2 MPEG-2, AVS & AVS +, VP6, VP8, VP9
Audio Decoding: MPEG I&II, MP3, Dolby Digital Plus, AAC-LC, HE-AAC V1 / V2
Audio Mode: Stereo / Mono / Left / Right / Exchange
Dimensions: 170mm X 100mm X 46mm

View Technical specification

Operation system

Android

System Resources

CPU	ARM Cortex A53, Quad core 64bit
GPU	High-performance multi-core Mali T720
Storage Memory	16GB eMMC 5.0
System Memory	2 GByte, DDR4 SDRAM

MPEG Transport Stream A/V Decoding

Transport Stream	ITU-T H.265/HEVC & H.264, ISO/IEC 13818-2 MPEG-2 AVS&AVS+, VP6, VP8, VP9
Profile Level	ITU-T H.265 Main 10 Profile@L5.1 high-tier MPEG-2 MP@HL
Input Rate	Max. 160Mbit/s (H.265)
Video Format	4:3, 16:9, Letter Box, Pan& Scan
Video Resolution	10bit, Up to 3840 x 2160@ 60fps, HDR10 Support, HLG
Audio Decoding	MPEG I& II,MP3,Dolby Digital Plus,AAC-LC,HE-AAC V1/V2
Audio Mode	Stereo/M ono/Left/Right/Exchange

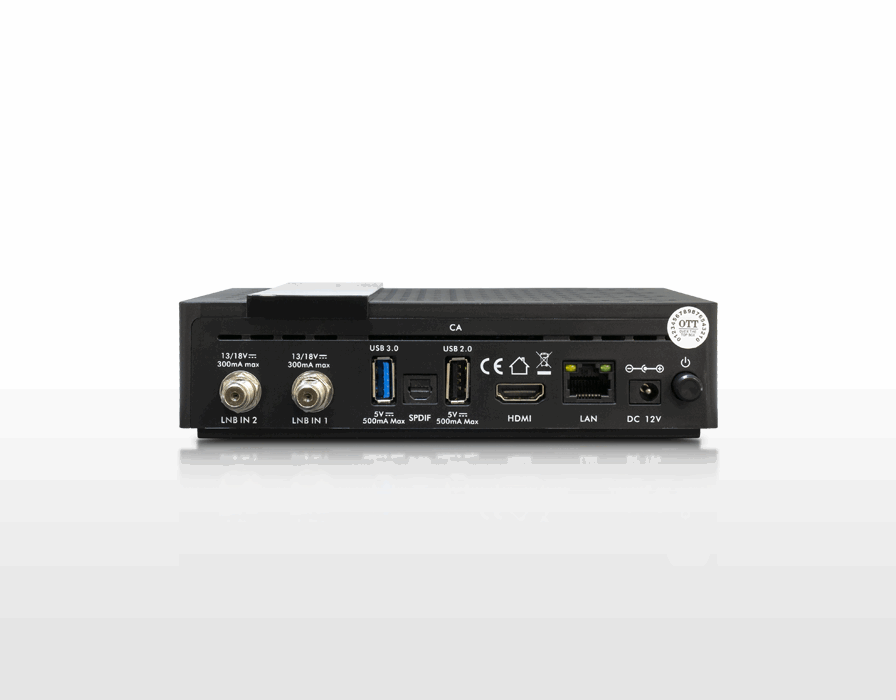

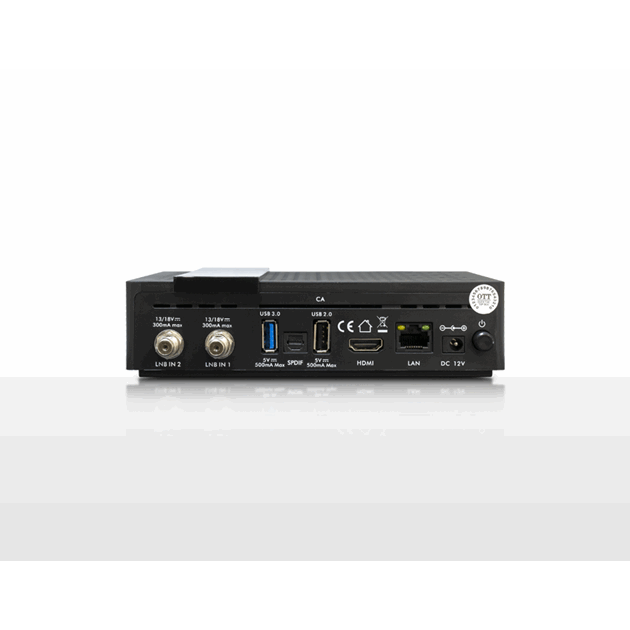

Rear Panel

Power Switch	Push/Pull Type
DC Power Jack	12Vdc / 2A
Smart card slot	1 smart card on rear
Tuner 1	DVB-S2X
Tuner 2	DVB-S2X
Smart Card	1 x
RJ-45 Connector	10/100Mbps
HDM I Connector	Version 2.0a, HDCP 2.2, HDCP1.4
SPDIF	Optical
USB3.0 X 1 USB2.0 X 1	USB3.0 and 2.0 Host Interface USB Memory Stick&HDD, HUB Support FAT, NTFS Support 5Vdc, 500mA Max.

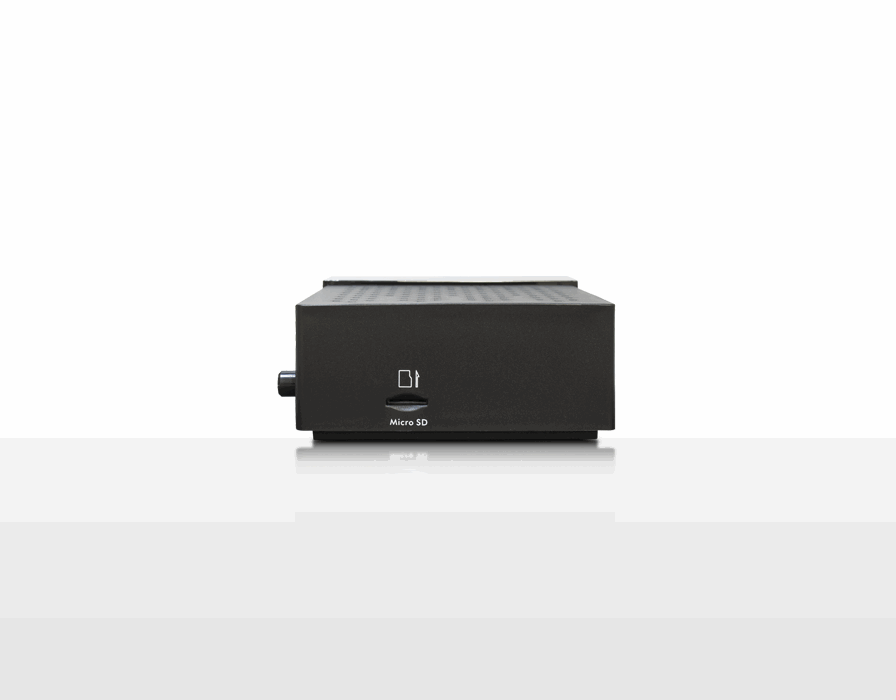

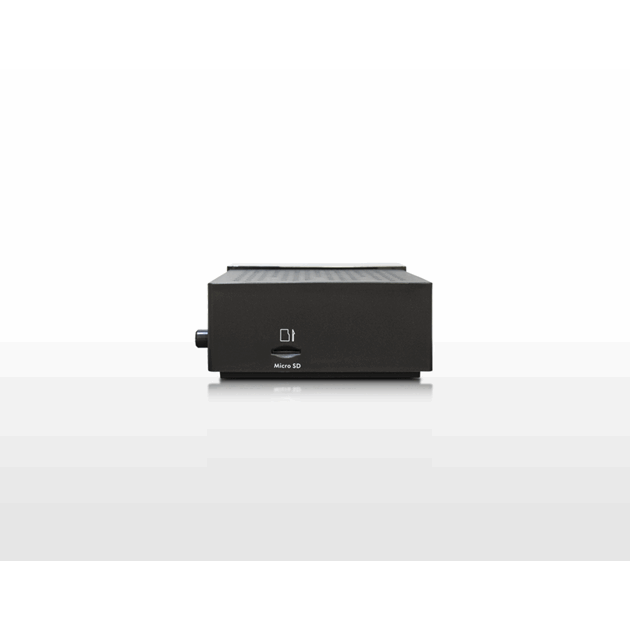

Side Panel

Micro SD Card

1 x

On board

Bluetooth Internal Antenna	Yes. 4.0 + EDR
Wifi Antenna Internal Antenna	IEEE 802. 11b/g/n/ac, 2.4GHz/5GHz Dual band(2T/2R)

Tuner 1 DVB-S2X

Input Connector	F-Type Female(Si-Labs SI2166) Support S2X
Frequency Range	950M Hz to 2150M Hz
Signal Level	-25 to -70dBm
LNB Power & Polarisation	Vertical : +13.5V ± 0.5V Max 4500mA
22KHz Tone	Horizontal : +18.5V ± 0.5V Max 500mA Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p
Diseqc Control	Version 1.0, 1.2, USALS Compatible
Demodulation	QPSK & 8PSK
Input Symbol Rate	DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps

Tuner 2 DVB-S2X

Input Connector	F-Type Female(Si-Labs SI2166) Support S2X
Frequency Range	950M Hz to 2150M Hz
Signal Level	-25 to -70dBm
LNB Power & Polarisation	Vertical : +13.5V ± 0.5V Max 4500mA
22KHz Tone	Horizontal : +18.5V ± 0.5V Max 500mA Frequency : 22KHz ± 4KHz, 0.6Vp-±p0.2Vp-p
Diseqc Control	Version 1.0, 1.2, USALS Compatible
Demodulation	QPSK & 8PSK
Input Symbol Rate	DVB-S : 1 ~ 55M bps / DVB-S2 : 1 ~ 45Mbps

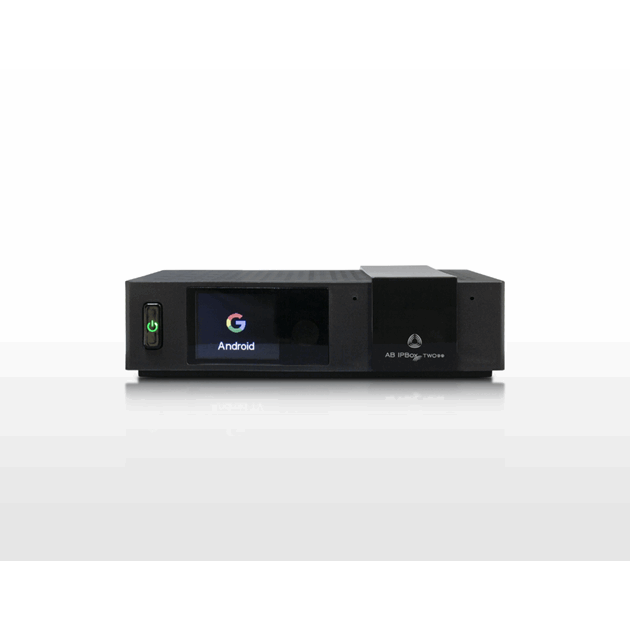

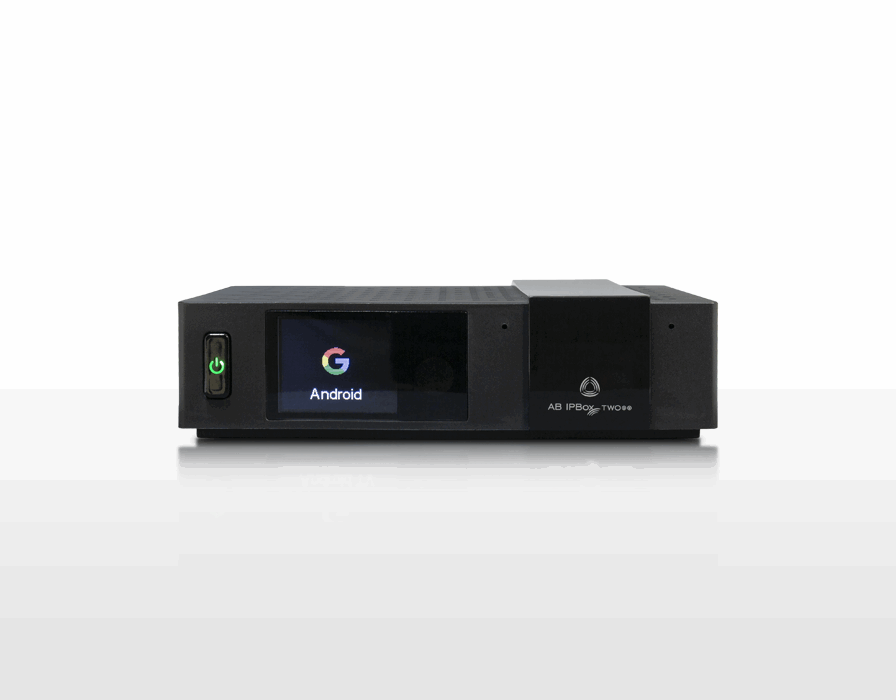

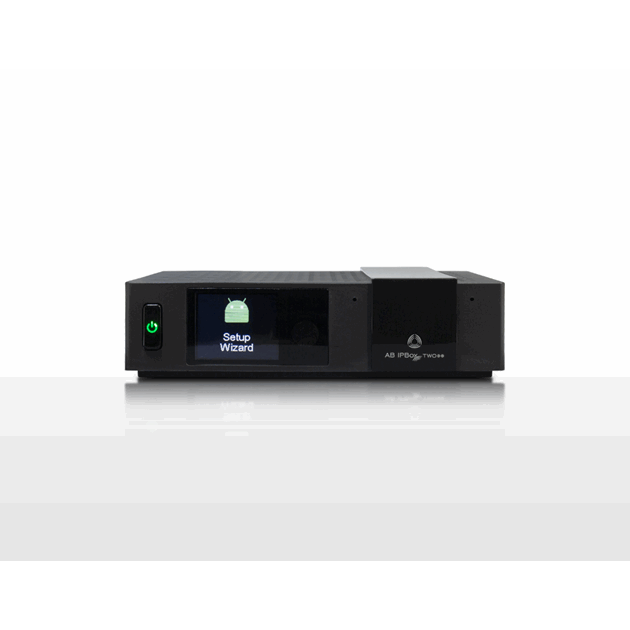

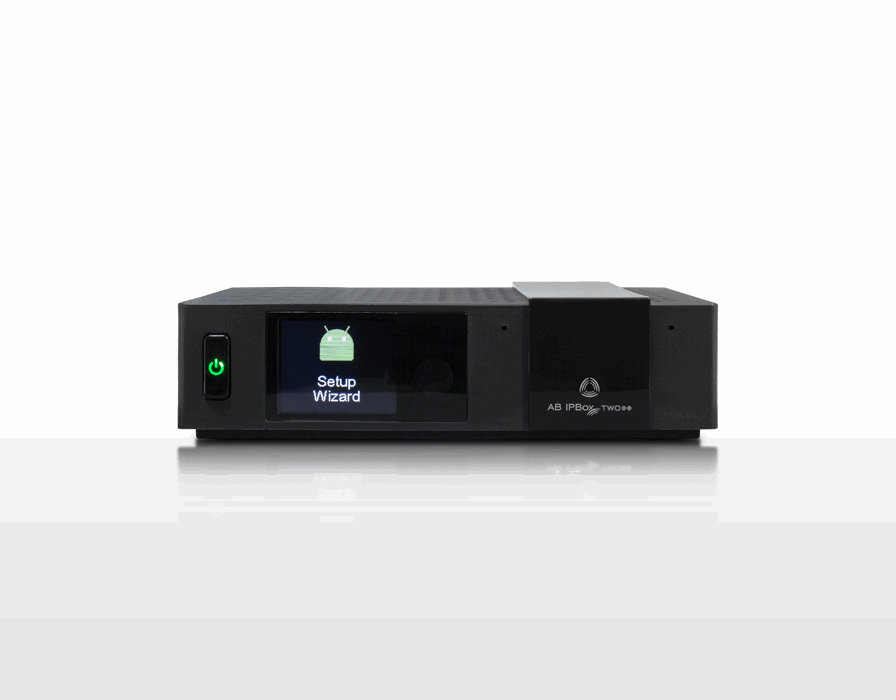

Front Panel

TFT LCD	1.77 inch TFT LCD
Power LED	Red/Green Dual Color light emitting diode
Buttons	1 x Power Button
Microphone	2 x Microphones Hole

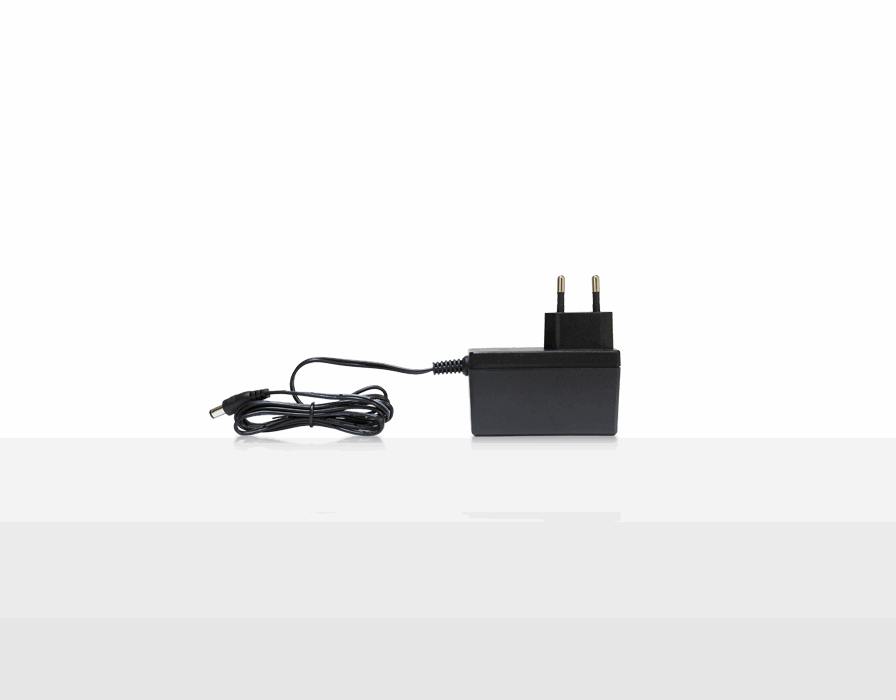

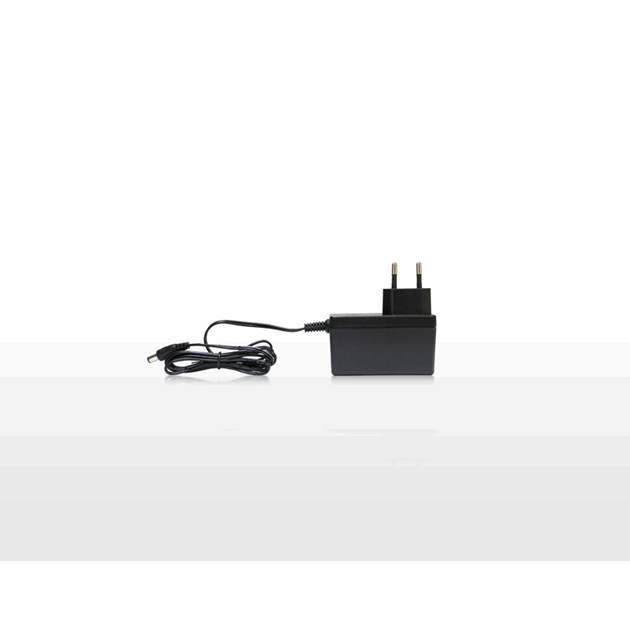

Power Supply

Input Voltage	AC 90 ~ 250V, 50/60HZ
Output Voltage	12V / 2A
Type	External AC to DC Adaptor
Power Consumption(Watt)	Stand-by Mode : Under 0.5W

Physical Dimension

Size(WXDXH)	170mm X 100mm X 46mm
Net Weight	0.7 Kg
Operating Temperature	0 ~ 45 °C
Storage Temperature	-10 ~ 70 ?
